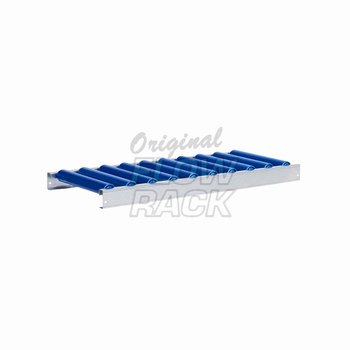

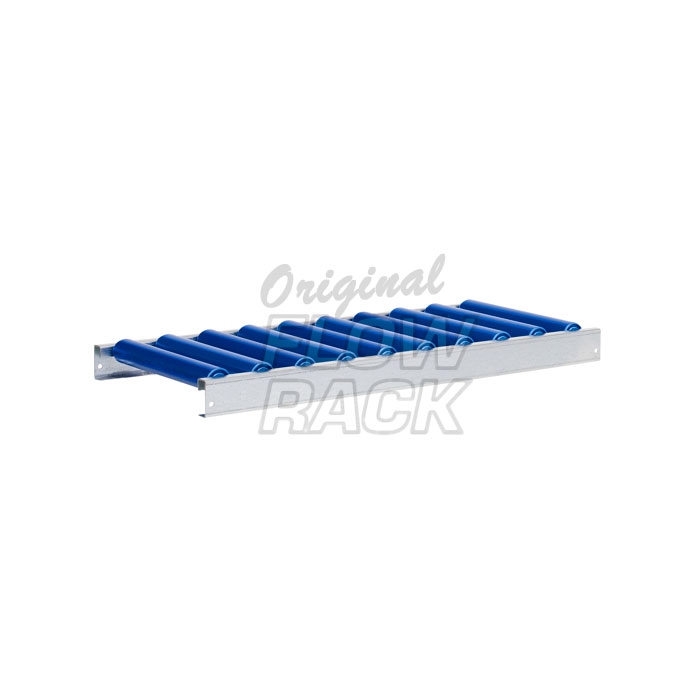

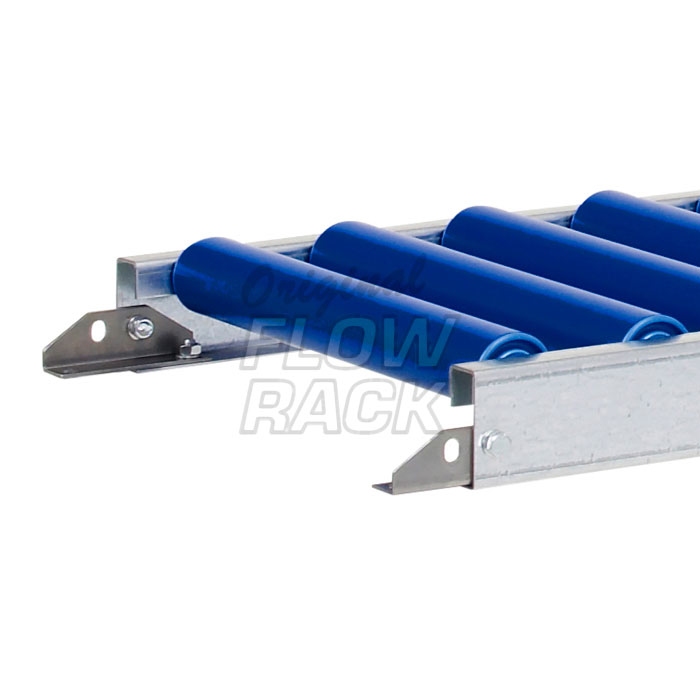

Main element roller conveyor (short) 920 mm

Dimensions 920x465x82 mm

Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
Main element roller conveyor (short) 920 mm
PRO+ *Prices are exclusive of VAT
Article codeDB920
Original Flowrack Type PRO+

Short element 920x465x82 mm
Gravity roller conveyor

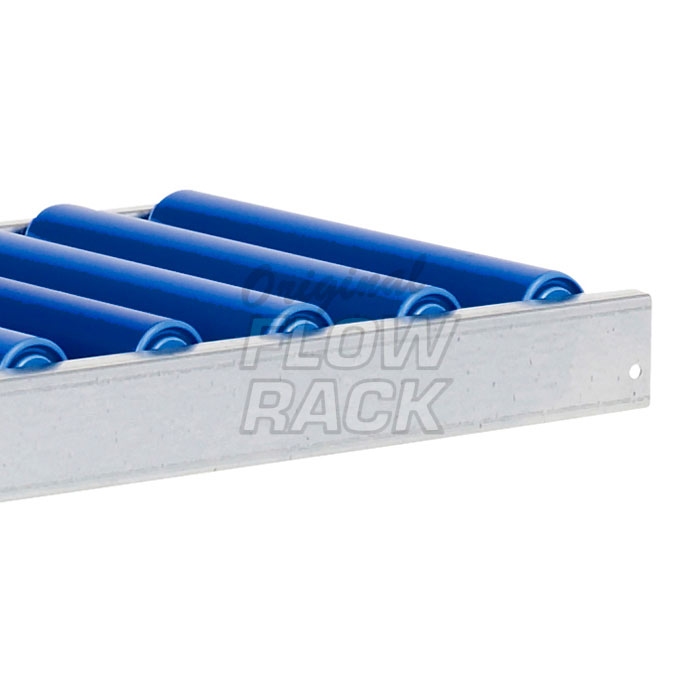

Safely closed conveyor profile
Pre-assembled
Roller length 400 mm
Roller pitch 92 mm


Description

With this short element you can round the conveyor length to fit your needs.
Pre-assembled delivery with coupling brackets.
Unique closed (safe) roller conveyor profiles.

Dimensions & Technique

Dimensions 920x465x82 mm (LxWxH).
All parts are made out of galvanized steel.

Roller length 400 mm (EL).
Roller pitch 92 mm (centre-to-centre).
Plastic rollers ø50 mm, RVS bearing balls, colour blue.
Solid 8 mm axle, galvanized.

10 rollers per element, maximum roller load 15 kg/each.
150 kg loading capacity per main element

Scope of delivery

1x main element pre-assembled.

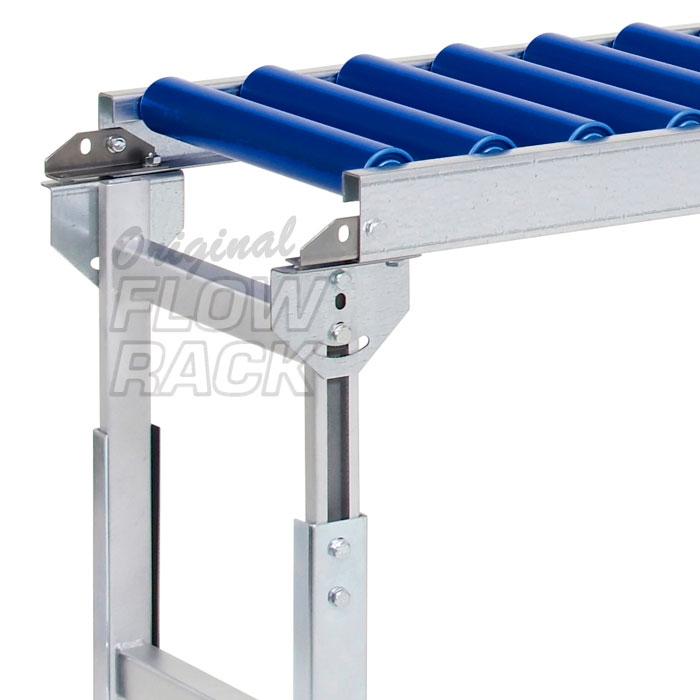

2x coupling bracket (with bolts/nuts).

Still needed

Stands and possibly end profiles.
