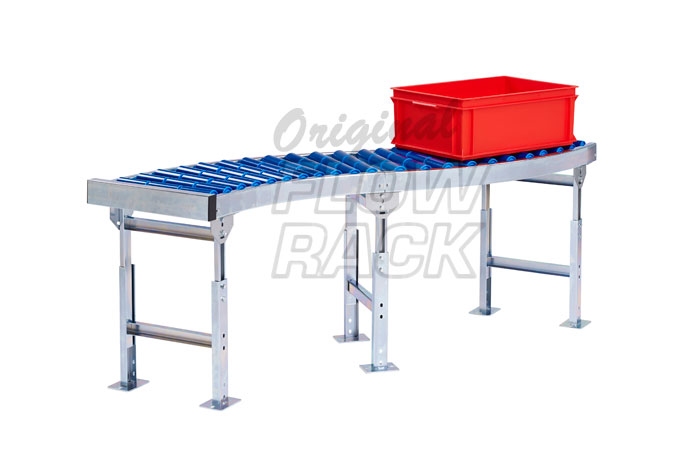

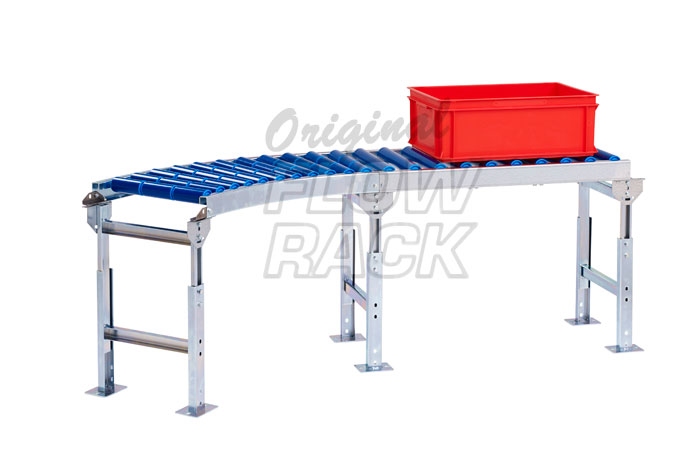

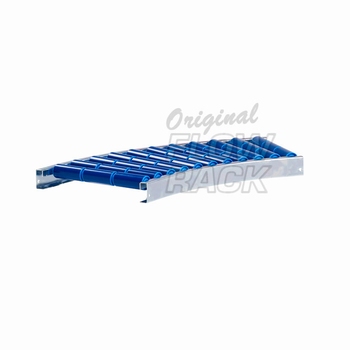

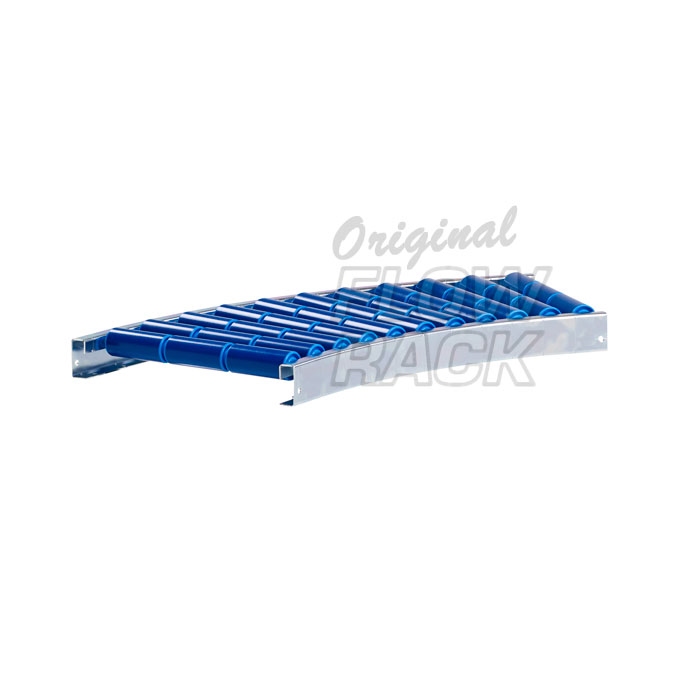

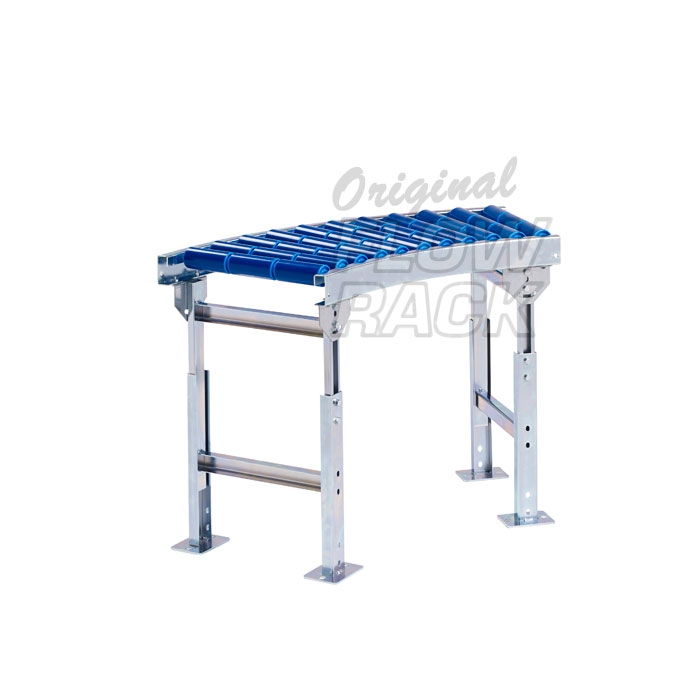

Roller conveyor curve 45°

Single curve

PRO+ *Prices are exclusive of VAT

Article code: DC45

Description

Sturdy curve to easily design your own roller conveyor lay-out.

With the special 3-piece curve rollers, the box follows the curve easily.

This curve also has unique closed (safe) curve side profiles.

Pre-assembled delivery.

Dimensions & Technique

All parts are made out of galvanized steel.

Curves are attached by H-stands (to each other or to the roller conveyors).

Roller length 400 mm (EL).

Roller pitch maximum 92 mm (centre-to-centre).

3-piece curve rollers ø50 mm, RVS bearing balls, colour blue.

Solid 8 mm axle, galvanized.

11 rolls for each 45° curve, maximum roller load 15 kg/each.

165 kg loading capacity per 45° curve.

Scope of delivery

1x 45° curve, pre-assembled.

2x coupling bracket (with bolts/nuts).

Still needed

Stands, roller conveyors and possibly end profiles.
