Heavy and stable profiles for decades of safe and efficient working.
Durable roller tracks with solid steel axles.

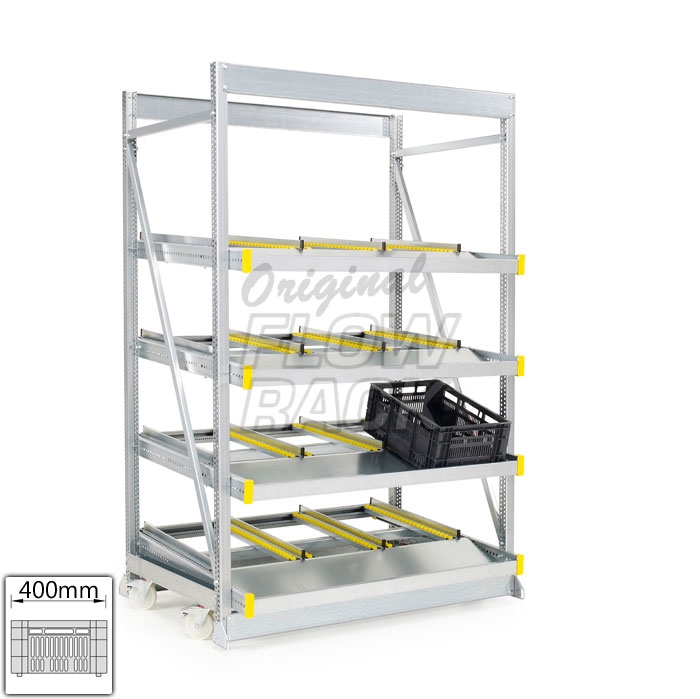

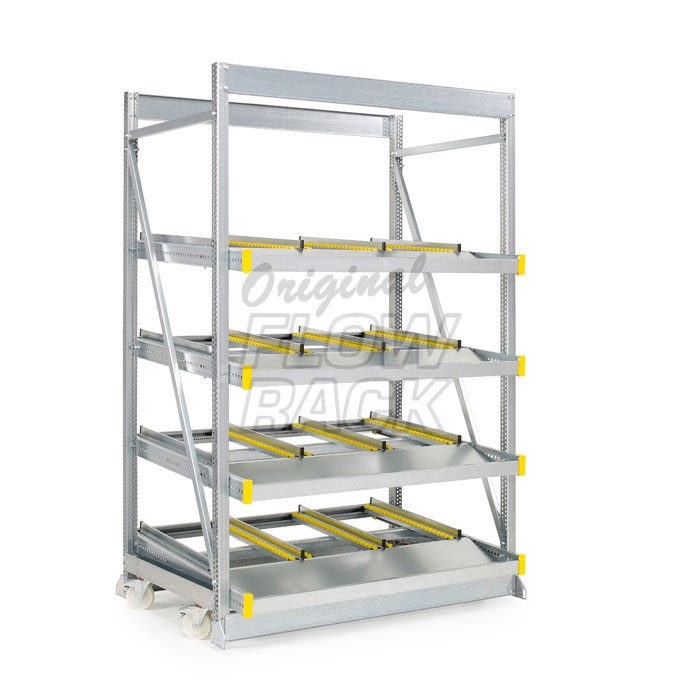

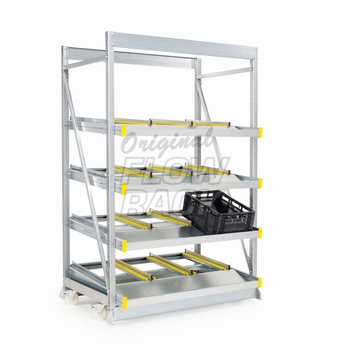

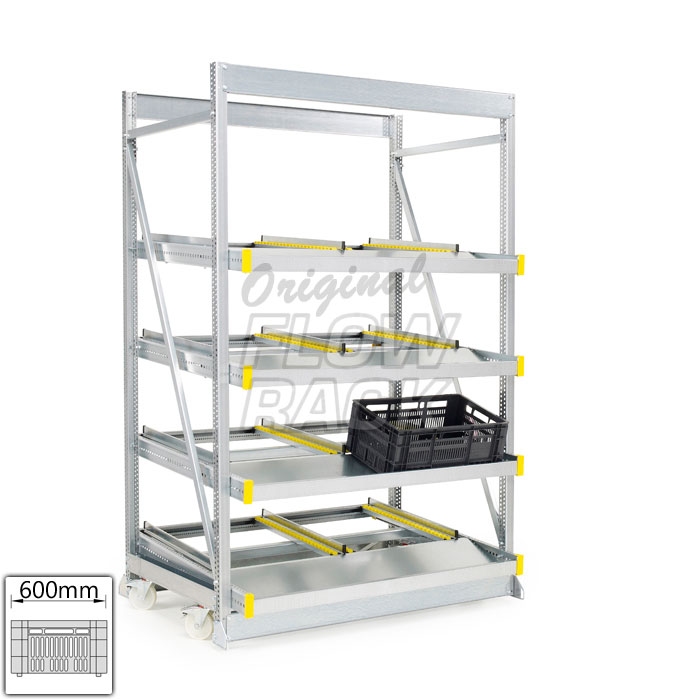

Mobile CBL flow rack
Extremely stable mobile version with 4 heavy castors including brake and fasten technique.
Unique anti-tilt aid and “Low Rider Technology” with low construction height.
Total rack loading capacity up to 1000 kg.
Dimensions CBL flow rack
1. Bay width (picture): 1390 mm. Choose between 1390 and 1790 mm.
2. Depth (picture): 1230 mm. Choose between 1230 to 1630 mm.
3. Height (picture): 2340 mm. Choose between 2340 and 2540 mm.
Post width 50 mm.
(bay width is the measurement between the posts)
Flexible and future-proof

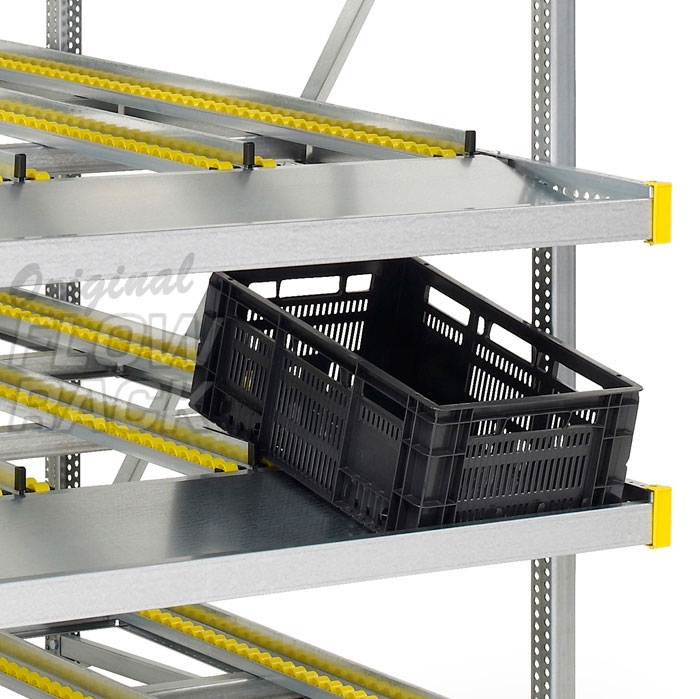

Roller tracks and guide strips are easily adjustable by hand.
Level height and slope are perfectly adjustable to your situation.
Extra levels and/or return level possible (future expansions also possible).
Most commonly used mobile CBL flow rack
Bay width 1390 and 1790 mm.
Depth 1230 mm (net storage depth 1200 mm).
Roller tracks and corner caps in the colour yellow or black.
CBL Flow rack finish
All profiles of galvanized steel.
Roller tracks in yellow or black (also in anti-static design available).
Corner caps in yellow, black or red.

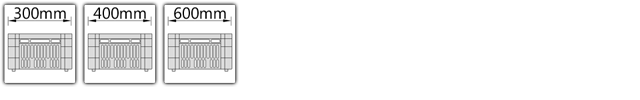

This bay width is deliverable for the following CBL crate widths:
