Durable roller tracks with solid steel axles.
Quick and error free order picking in your pallet warehouse
Can easily be built into all types of pallet racks.
Adapter brackets to mount the shelves in to your pallet rack are included.
Easy to re-install into other rack rows or another pallet warehouse.
Optimally adaptable to a varying assortment.
Unique: Easy expansion of roller tracks and weight capacity.

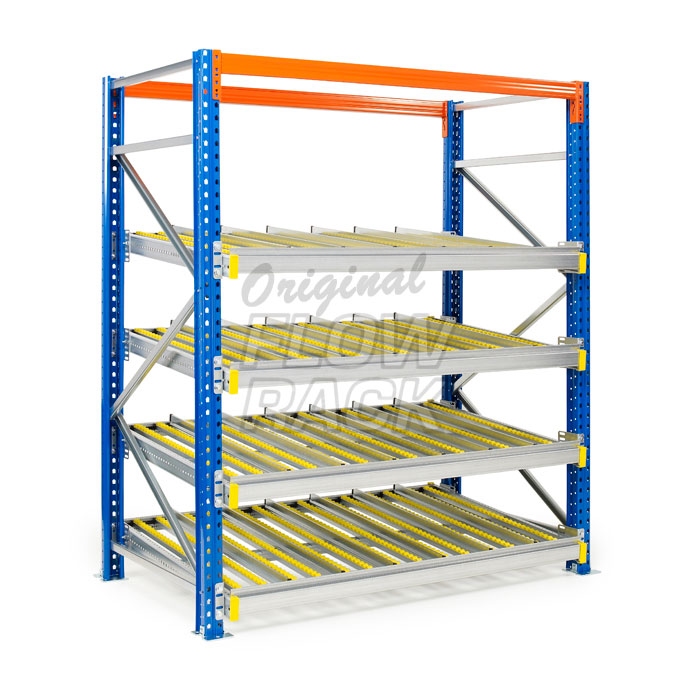

Dimensions flow shelves
1. Bay width (picture): 1800 mm. Choose between 1400, 1800 and 2700 mm.
2. Depth (picture): 1230 mm. A broad choice between 1230 to 3030 mm.
Roller tracks and guide strips are easily adjustable by hand.
Level height and slope are perfectly adjustable to your situation.
Most commonly used flow shelves
Bay width 2700 mm.
Depth 1230 mm (net storage depth 1200 mm).
Roller tracks and corner caps in the colour yellow.
Flow shelf finish
All profiles of galvanized steel.
Roller tracks in yellow or black (also in anti-static design available).
Corner caps in yellow, black or red.

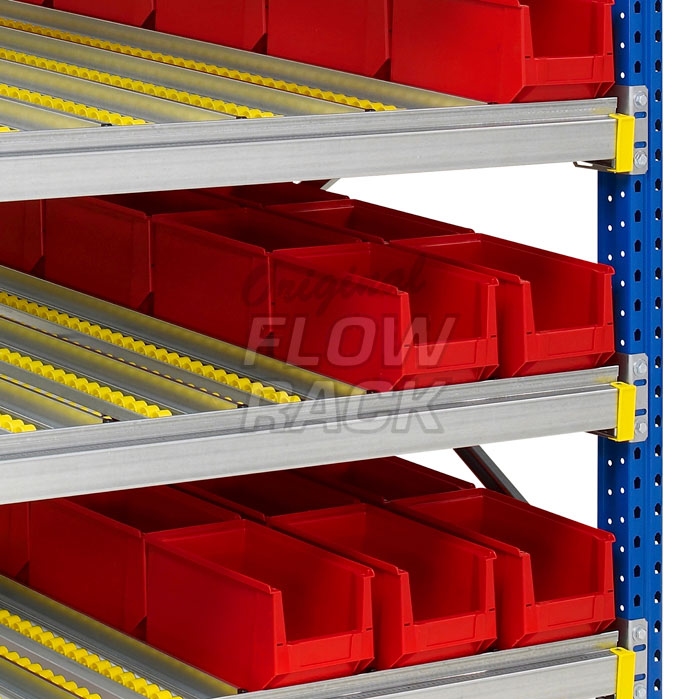

Boxes and bins

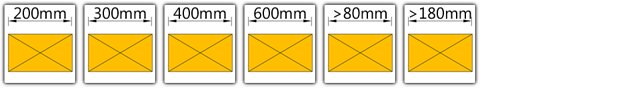

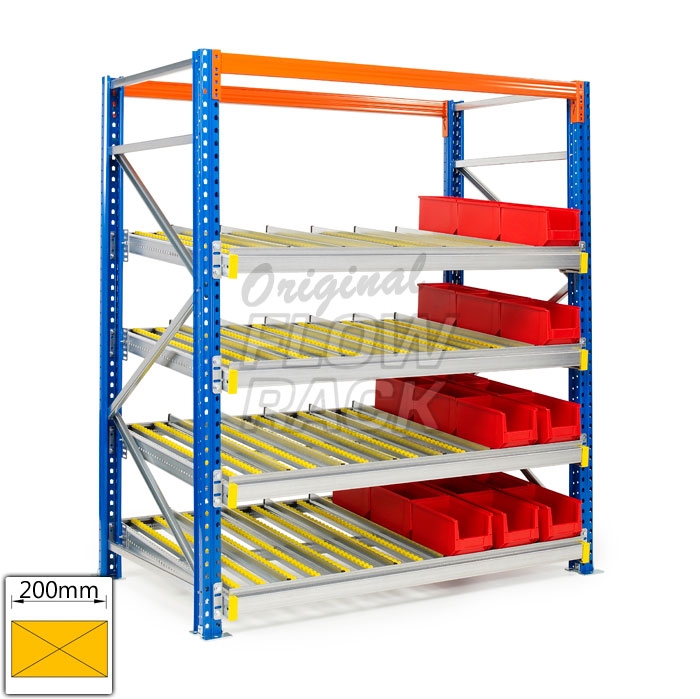

The flow shelves are deliverable for the following box or bin widths:
(roller carpet c/c 50 mm for >80 mm, roller carpet c/c 100 mm for >180 mm)
